Create or Reconstruct an INSPIRE Grid

Source: R/inspire_grid.R, R/inspire_grid_from_ids.R
inspire_grid.Rd

Generates a standard-compliant spatial grid aligned to the CRS origin. This function acts as a unified interface:

  • If x is a spatial object (extent), it creates a new grid (calling inspire_grid_from_extent).

  • If x is a character vector (INSPIRE IDs), it reconstructs the grid (calling inspire_grid_from_ids).

It combines high performance for large areas (using sfheaders) with a flexible and robust set of features for input handling and output formatting, including INSPIRE-compliant grid IDs and automatic parallel processing with mirai and future backends.

This function takes a vector of INSPIRE-compliant IDs and derives a regular spatial grid from it. For generating a spatial grid from a spatial extent, see inspire_grid_from_extent.

Usage

inspire_grid(
  x,
  cellsize_m = NULL,
  crs = NULL,
  output_type = "sf_polygons",
  clip_to_input = FALSE,
  use_convex_hull = FALSE,
  buffer_m = 0,
  id_format = "both",
  axis_order = "NE",
  include_llc = TRUE,
  point_type = "centroid",
  parallel = "auto",
  quiet = FALSE,
  dsn = NULL,
  layer = NULL,
  max_memory_gb = NULL,
  ...
)

# S3 method for class 'sf'
inspire_grid(
  x,
  cellsize_m = NULL,
  crs = NULL,
  output_type = "sf_polygons",
  clip_to_input = FALSE,
  use_convex_hull = FALSE,
  buffer_m = 0,
  id_format = "both",
  axis_order = "NE",
  include_llc = TRUE,
  point_type = "centroid",
  parallel = "auto",
  quiet = FALSE,
  dsn = NULL,
  layer = NULL,
  max_memory_gb = NULL,
  ...
)

# S3 method for class 'sfc'
inspire_grid(
  x,
  cellsize_m = NULL,
  crs = NULL,
  output_type = "sf_polygons",
  clip_to_input = FALSE,
  use_convex_hull = FALSE,
  buffer_m = 0,
  id_format = "both",
  axis_order = "NE",
  include_llc = TRUE,
  point_type = "centroid",
  parallel = "auto",
  quiet = FALSE,
  dsn = NULL,
  layer = NULL,
  max_memory_gb = NULL,
  ...
)

# S3 method for class 'bbox'
inspire_grid(
  x,
  cellsize_m = NULL,
  crs = NULL,
  output_type = "sf_polygons",
  clip_to_input = FALSE,
  use_convex_hull = FALSE,
  buffer_m = 0,
  id_format = "both",
  axis_order = "NE",
  include_llc = TRUE,
  point_type = "centroid",
  parallel = "auto",
  quiet = FALSE,
  dsn = NULL,
  layer = NULL,
  max_memory_gb = NULL,
  ...
)

# S3 method for class 'numeric'
inspire_grid(
  x,
  cellsize_m = NULL,
  crs = NULL,
  output_type = "sf_polygons",
  clip_to_input = FALSE,
  use_convex_hull = FALSE,
  buffer_m = 0,
  id_format = "both",
  axis_order = "NE",
  include_llc = TRUE,
  point_type = "centroid",
  parallel = "auto",
  quiet = FALSE,
  dsn = NULL,
  layer = NULL,
  max_memory_gb = NULL,
  ...
)

# S3 method for class 'matrix'
inspire_grid(
  x,
  cellsize_m = NULL,
  crs = NULL,
  output_type = "sf_polygons",
  clip_to_input = FALSE,
  use_convex_hull = FALSE,
  buffer_m = 0,
  id_format = "both",
  axis_order = "NE",
  include_llc = TRUE,
  point_type = "centroid",
  parallel = "auto",
  quiet = FALSE,
  dsn = NULL,
  layer = NULL,
  max_memory_gb = NULL,
  ...
)

# S3 method for class 'character'
inspire_grid(
  x,
  cellsize_m = NULL,
  crs = NULL,
  output_type = "sf_polygons",
  clip_to_input = FALSE,
  use_convex_hull = FALSE,
  buffer_m = 0,
  id_format = "both",
  axis_order = "NE",
  include_llc = TRUE,
  point_type = "llc",
  parallel = "auto",
  quiet = FALSE,
  dsn = NULL,
  layer = NULL,
  max_memory_gb = NULL,
  ...
)

inspire_grid_from_extent(
  grid_extent,
  cellsize_m,
  crs = NULL,
  output_type = "sf_polygons",
  clip_to_input = FALSE,
  use_convex_hull = FALSE,
  buffer_m = 0,
  id_format = "both",
  axis_order = "NE",
  include_llc = TRUE,
  point_type = "centroid",
  parallel = "auto",
  quiet = FALSE,
  dsn = NULL,
  layer = NULL,
  max_memory_gb = NULL,
  ...
)

inspire_grid_from_ids(
  ids,
  point_type = c("llc", "centroid"),
  output_type = c("sf_polygons", "sf_points", "dataframe"),
  include_llc = TRUE,
  id_format = c("both", "long", "short"),
  axis_order = c("NE", "EN"),
  quiet = FALSE,
  dsn = NULL,
  layer = NULL,
  ...
)

Arguments

x

The main input object: either a spatial object (extent) or a character vector (INSPIRE IDs).

cellsize_m

A single integer representing the grid cell size in metres (e.g., 1000 for a 1 km grid). Required for spatial inputs.

crs

The coordinate reference system (CRS) for the output grid. Accepts various formats handled by sf::st_crs(): an integer or numeric EPSG code (e.g., 3035), a string representation like "epsg:3035", or a crs object. If NULL (default), the CRS is inherited from the spatial input. If the input also lacks a CRS, the function will stop with an error.

output_type

The class of the output object: "sf_polygons" (default) creates a spatial object with polygon geometries, "sf_points" creates an sf object with point geometries, "dataframe" creates a data frame with grid cell centroid coordinates (X_centroid, Y_centroid), and "spatraster" creates a terra::SpatRaster object with grid cell IDs stored as factor levels (Raster Attribute Table). Note: "spatraster" is only supported by inspire_grid_from_extent(), not by inspire_grid_from_ids().

clip_to_input

A logical value. If TRUE, the grid is filtered to include only cells that intersect the spatial input. This does not cut cell geometries.

use_convex_hull

A logical value. If TRUE and clip_to_input is TRUE, the grid is clipped to the convex hull of the input geometry, which can be faster and simpler than using a complex polygon.

buffer_m

A numeric value. If clip_to_input is TRUE, this specifies a buffer distance in metres to apply to the spatial input before clipping. Defaults to 0 (no buffer).

id_format

A character string specifying which grid cell IDs to generate. Options are "both" (default), "long", "short", or "none".

axis_order

A character string specifying the coordinate order for the output Short INSPIRE IDs. This parameter is only used when id_format is "short" or "both". It can be one of:

  • "NE" (the default) to produce the format {cellsize}N{y}E{x}.

  • "EN" to produce the format {cellsize}E{x}N{y} (e.g. this format is used in Danish national grid).

include_llc

A logical value. If TRUE (default), columns for the lower-left corner coordinates (X_LLC, Y_LLC) of each cell are included in the output.

point_type

A character string determining the location of the points when output_type = "sf_points": "centroid" for the center of the cell, or "llc" for the lower-left corner. Default is "llc".

parallel

Controls parallel execution. Options are:

  • 'auto' (default): Automatically detects and uses a configured mirai or future backend if one is available. If both are set, it prefers the one with more available workers and issues a warning. If neither is configured, it runs sequentially.

  • TRUE: Forces the function to attempt parallel execution. It will raise an error if a valid parallel backend (with >1 worker) is not configured.

  • FALSE: Forces the function to run in single-threaded sequential mode.

For parallelism, you must configure a backend before calling this function, for example: mirai::daemons(8) or future::plan("multisession", workers = 8). Performance tip: Benchmarks show 8 workers provide optimal performance for most grid sizes. Using >32 workers typically decreases performance due to overhead. The function automatically limits active workers for small grids to minimize overhead: <50k cells use max 4 workers, <500k cells use max 8 workers, <2M cells use max 16 workers. This automatic limiting can be overridden by setting options(gridmaker.tile_multiplier). Note: Parallel processing is not supported when output_type = "spatraster". Raster output will always run sequentially.

quiet

Logical value. If TRUE, all progress messages and progress bars are suppressed. Defaults to FALSE.

dsn

The destination for the output grid. For sf objects, this is passed to sf::st_write. For spatraster output, this uses terra::writeRaster. This can be a file path (e.g., "path/to/grid.gpkg" for vector data or "path/to/grid.tif" for raster data) or a database connection string. If dsn is provided, the grid is written to the specified location instead of being returned as an object.

Supported vector formats for chunked disk writes:

  • .gpkg (GeoPackage) - Recommended - Best balance of speed, compatibility, and modern features

  • .shp (Shapefile) - Widely used, fast writes, but has limitations (10-char field names, 2GB limit)

  • .geojson, .json (GeoJSON) - Web-friendly, works but slower for large grids

  • .geojsonl, .geojsonseq (GeoJSONSeq) - Newline-delimited GeoJSON

  • .sqlite (SQLite/SpatiaLite) - Database format (GeoPackage is built on SQLite)

  • .fgb (FlatGeobuf) - Cloud-optimized format

  • .gdb (OpenFileGDB) - ESRI FileGDB format

  • .csv, .tsv, .txt (for dataframe output only)

Other formats not listed have not been tested and will generate a warning.

layer

The name of the grid layer, passed directly to sf::st_write. Its interpretation depends on the destination driver. For a GeoPackage file, this will be the layer name. If dsn is a file path and layer is not specified, it defaults to the file's base name.

max_memory_gb

A numeric value. Maximum memory in gigabytes to use for grid creation. Default is NULL, in which case there is an automatic limit based on available free system memory (not total system RAM). Using this argument allows manual override, which is recommended on certain HPC (High Performance Computing) systems where jobs are allocated a fixed amount of memory that is less than the total free memory of the allocated node.

...

Additional arguments passed to backend handlers. When writing to text files (e.g., .csv, .tsv) via dsn, these arguments are passed to write_delim (e.g., na = "NA", quote = "all"). When writing to spatial files via dsn, these are passed to st_write. For output_type = "spatraster" writing, these are passed to writeRaster. For streaming backends (mirai or sequential), this can include max_cells_per_chunk to control memory usage.

grid_extent

The spatial object defining the extent. Can be an sf object, sfc geometry collection, bbox, numeric vector (as c(xmin, ymin, xmax, ymax)), or matrix.

ids

A character vector of INSPIRE-compliant grid cell IDs (e.g., "CRS3035RES100000mN26E43").

Value

If dsn is NULL (the default), an sf object, data.frame, or SpatRaster representing the grid. If dsn is specified, the function writes the grid to a file and returns invisible(dsn).

An sf object or data.frame representing the grid derived from the INSPIRE IDs. If dsn is specified, returns invisible(dsn).

Details

This function creates a spatial grid aligned to the CRS origin, with support for clipping to input geometries, parallel processing, and multiple output formats.

Examples

library(sf)
#> Linking to GEOS 3.12.1, GDAL 3.8.4, PROJ 9.4.0; sf_use_s2() is TRUE
# Load the sample data from the sf package
nc_raw <- st_read(system.file("shape/nc.shp", package = "sf"), quiet = TRUE)

# Define target projected CRS and cell size
target_crs <- 5070 # NAD83 / Conus Albers
cellsize_m <- 10000 # 10 km

# Project the data
nc <- st_transform(nc_raw, target_crs)

# Create a grid covering the data
nc_grid <- inspire_grid_from_extent(
  grid_extent = nc,
  cellsize_m = cellsize_m,
  output_type = "sf_polygons",
  clip_to_input = TRUE
)
#> No parallel backend detected. Running in sequential mode. See ?inspire_grid for details how to enable parallel processing to speed up large jobs.

# Or using the S3 generic
nc_grid <- inspire_grid(nc, cellsize_m = cellsize_m, clip_to_input = TRUE)
#> No parallel backend detected. Running in sequential mode. See ?inspire_grid for details how to enable parallel processing to speed up large jobs.

head(nc_grid, 3)
#> Simple feature collection with 3 features and 4 fields
#> Geometry type: POLYGON
#> Dimension:     XY
#> Bounding box:  xmin: 1570000 ymin: 1340000 xmax: 1600000 ymax: 1360000
#> Projected CRS: NAD83 / Conus Albers
#>     X_LLC   Y_LLC                      GRD_ID_LONG GRD_ID_SHORT
#> 1 1580000 1340000 CRS5070RES10000mN1340000E1580000 10kmN134E158
#> 2 1590000 1340000 CRS5070RES10000mN1340000E1590000 10kmN134E159
#> 3 1570000 1350000 CRS5070RES10000mN1350000E1570000 10kmN135E157
#>                         geometry
#> 1 POLYGON ((1580000 1340000, ...
#> 2 POLYGON ((1590000 1340000, ...
#> 3 POLYGON ((1570000 1350000, ...
library(sf)

inspire <- c(
  "CRS3035RES100000mN26E43", "CRS3035RES100000mN26E44",
  "CRS3035RES100000mN27E41", "CRS3035RES100000mN27E42",
  "CRS3035RES100000mN27E43", "CRS3035RES100000mN27E44"
)

grid <- inspire_grid_from_ids(inspire)

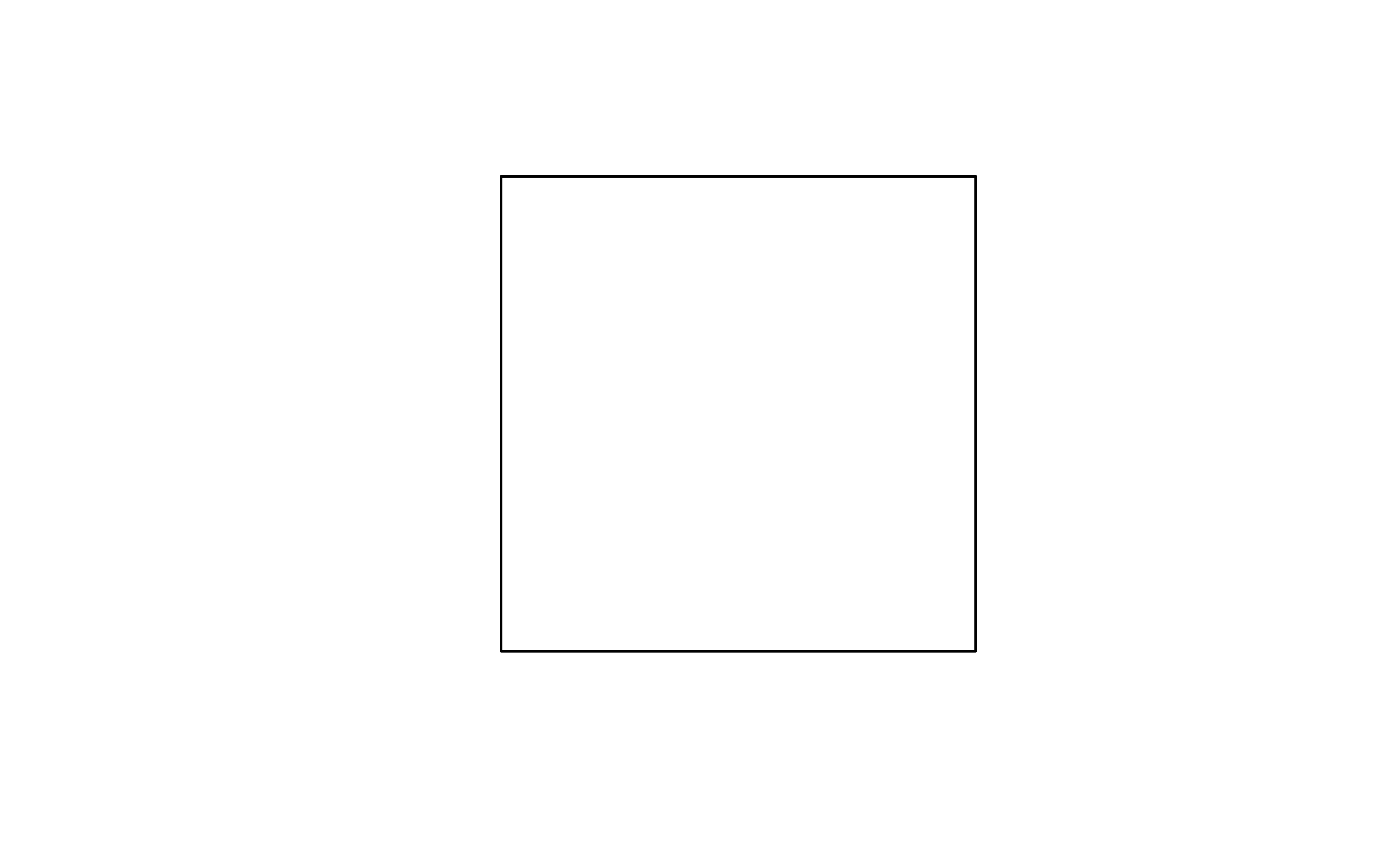

plot(grid$geometry)


# Or using the S3 generic
grid <- inspire_grid(inspire)
plot(grid$geometry)
